Uncompromised speed

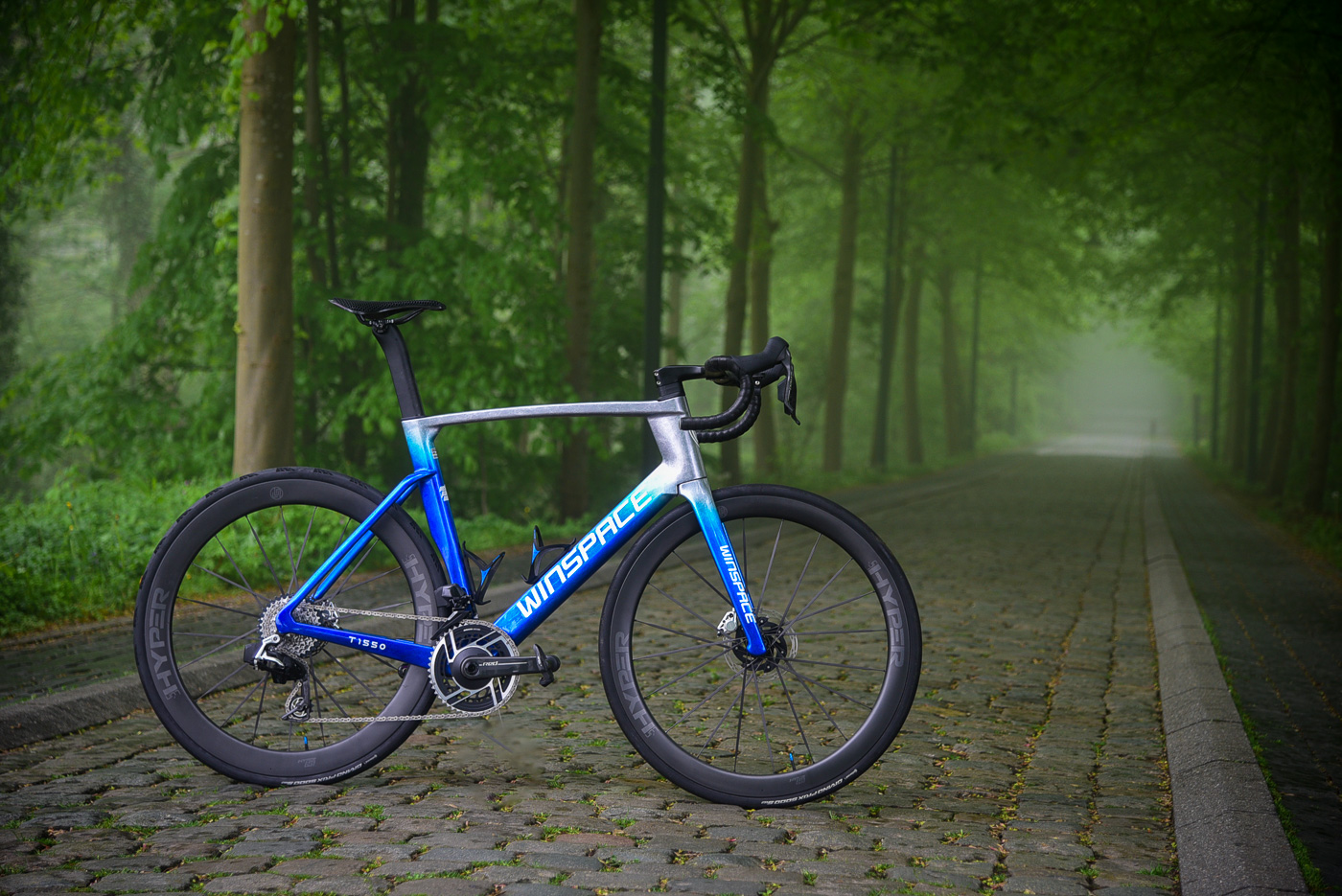

T1550 Aero Gen 2

The Winspace race frameset with performance and quality to rival... anything.

Born to Race

The new generation T1550 takes everything to the next level. It retains the aggressive geometry and performance focus, but with further optimizations. The T1550 is a bike builder's dream. Fully UCI certified, it's ready to compete at the highest levels.
The T1500 and Hyper wheels have featured in race wins at national and international level. From 2024 Winspace Pro Women's Cycling Team race on the T1550 and Hyper wheels.

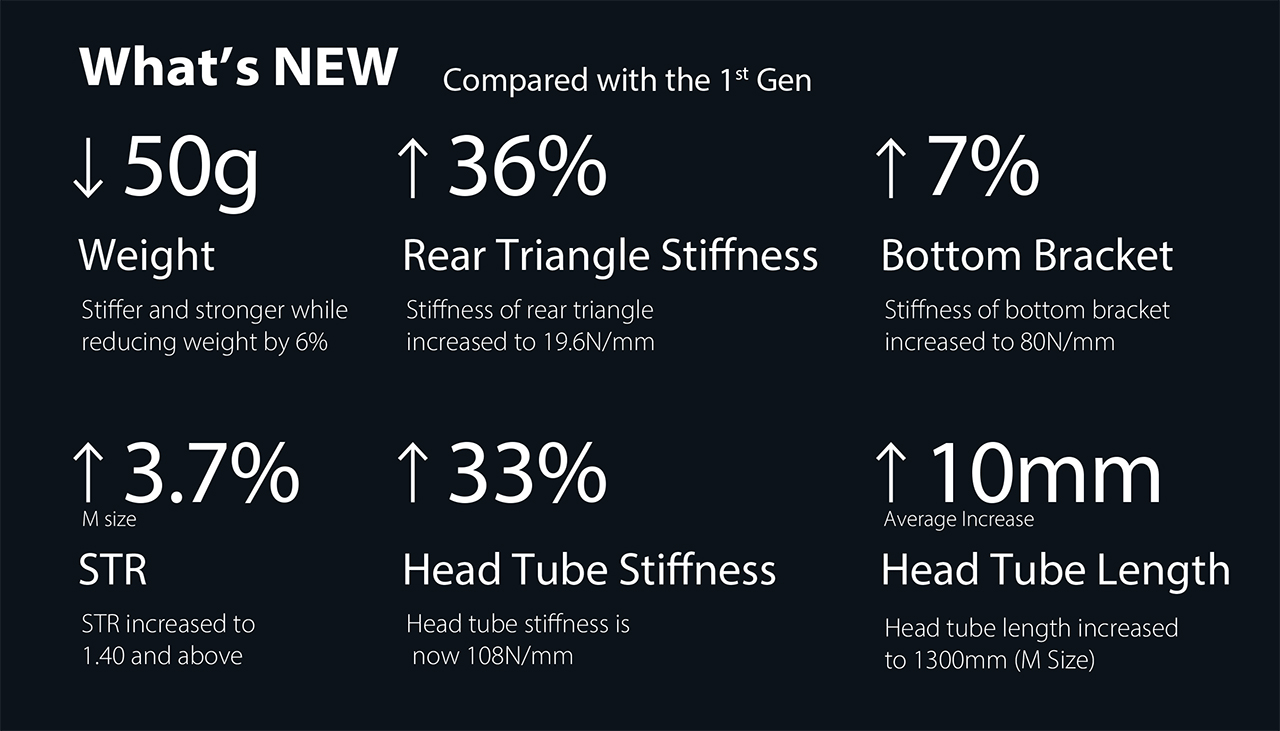

Gen 2 Highlights:

  • Lightweight: Who said aero frames need to be heavy? Just 828g for a medium sized frame. Full builds from 7.2Kg

  • 1.5" ACR Headset: Allows full internal cable routing.

  • One-piece mould technology: The T1550 frameset features T1000 and T800 carbon fiber and is manufactured using EPS technology from a one-piece mould for improved quality and light weight.

  • Revised bottom bracket: Threaded T47 for improved compatability and easier maintenance

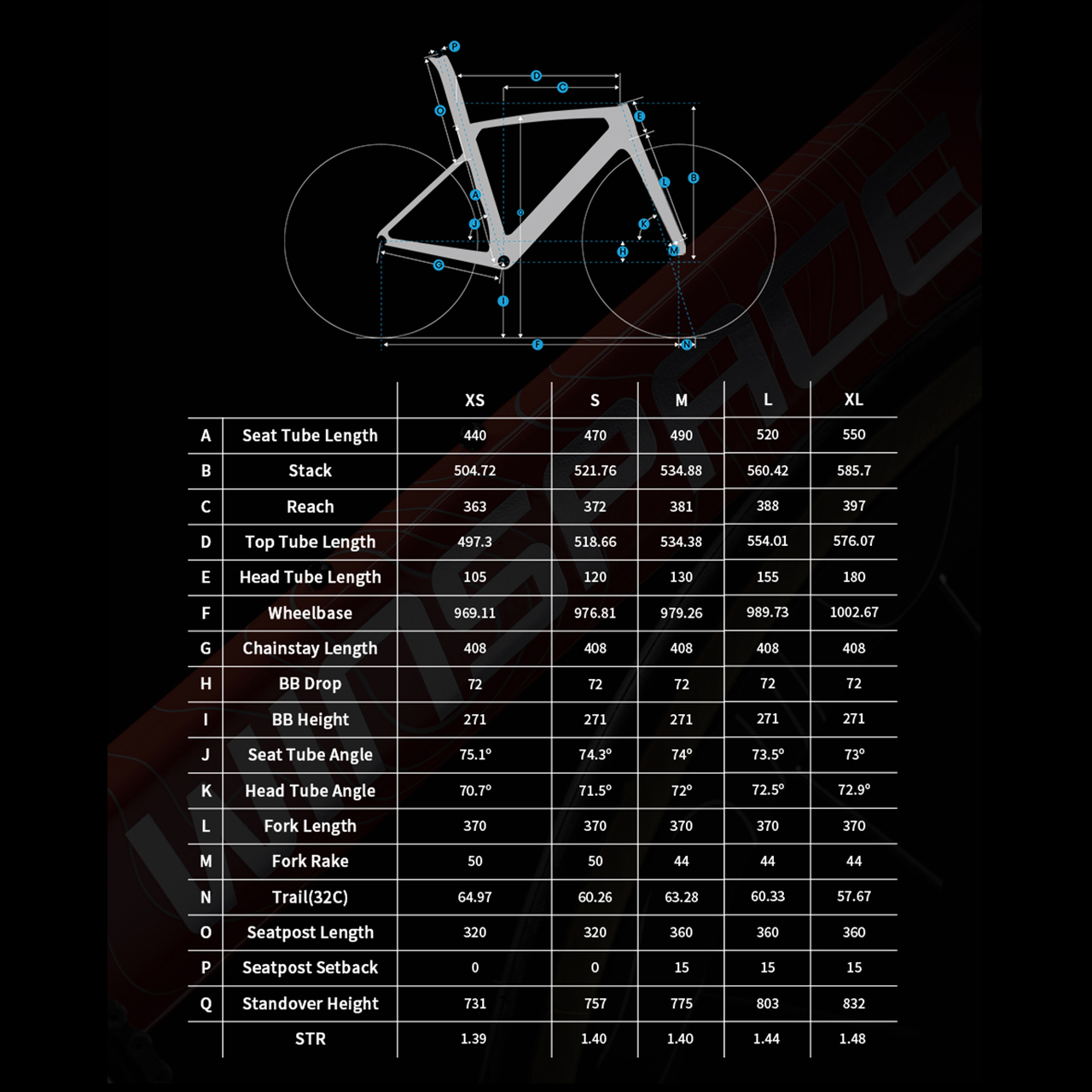

  • Revised Geometry: The T1550 geometry encourges a low, aero position for maximum efficiency at speed and tube angles that give responsive steering for precise cornering. The Gen 2 has improved stack-to-reach ratio for reduced fatigue on longer rides.

  • Max tyre width: 32mm for great flexibility

Please get in touch if you'd like to Pay In 3

Specifications:

  • Warranty: 3 year warranty support by Winspace UK (Winspace UK customers only)

  • Sizes: XS (440mm), S (470mm), M (490mm), L (520mm), XL (550mm)

  • UCI approved

  • Headset: 1.5″/ACR/STD (headset included.)

  • Bottom Bracket: Internal T47

  • Seatpost: Proprietary Aero seatpost (included)

  • Braking: flat mount disc

  • Front derailleur: Brazed on

  • Cable routing: Mechanical / Di2 /Campy EPS / SRAM eTAP

  • Axles: Disc Brake: 12mm through axle F100mm R142mm

  • Tyre clearance: 700C x 32C max

  • Material: Toray T1000 + T800 carbon fibre

  • Weight: 828g +/-35g for M size (unpainted)

  • Included: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger, Axles

  • NOTE: The Zero SL integrated carbon bars are the perfect match for the T1550 frameset. Please get in touch to order.

Why Winspace?

Founded in 2008, Winspace have been designing, building and racing carbon fiber bikes for over a decade. Based at their factory in in Xiamen, China they are at the heart of the carbon fiber industry with a global, local network of dealers to support you.

Why buy from Winspace UK?

Take the risk out of your purchase!

  • We're an official stockist and service centre for Winspace frames, wheels and accessories.

  • We pride ourselves on the personal service we provide and believe our prices are a fair reflection of our dedication to customer support, the advice we are always happy to share and the UK warranty we provide.

  • The price you see is the price you pay. We have already paid import duty and VAT on our stock so there are no hidden costs to you.

  • Come and see the products. We have demo bikes to ride and sets of Hyper wheels in both rim and disc versions you can try before buying.

  • Payment options include debit or credit card, or 3 interest-free 0% payments to help spread the cost.

  • You get the support of a local authorised service centre who can carry out servicing, repairs and warranty work backed up by Winspace and their supply of spares.

  • We can supply framesets and wheels on their own or build you a complete bike using your chosen components. Please call to discuss your ideas and requirements.

"This is a NO BRAINER. The frame is very very well made. It's amongst the best I've seen. The execution of the manufacturing here is very very good."

Watch review here.

Hambini Performance Engineering

Find out more

Get in touch to ask about current stock levels, warranty service or general product advice.

Contact
