Raising the bar

C5 Road

The new Winspace carbon frameset that redefines value.

Winspace UK

“Built from Toray carbon fibre with longer chainstays and clearance for wide tyres, the C5 is built for toughness and confident handling.”

Winspace UK

“The C5 is brilliant value for money and will suit a range of riders, men and women, who appreciate the light weight of carbon and the reassurance of wider tyres and disc brakes.”

Features:

  • Lightweight: Toray T700 + T800 carbon fibre give strength and lightweight.

  • ACR Headset: Allows full internal cable routing for a super clean look.

  • Big tyre clearance: With the trend for wider rims and tyres, the C5 can accommodate up to 32c tyres.

  • Sealed Axle Design: The sealed thru axle design gives a seamless appearance and maximises aerodynamics.

  • Big tyre clearance: With the trend for wider rims and tyres, the C5 can accommodate up to 32c tyres.

Please get in touch if you'd like to Pay In 3

Specifications:

  • Warranty: 3 year warranty support by Winspace UK (Winspace UK customers only)

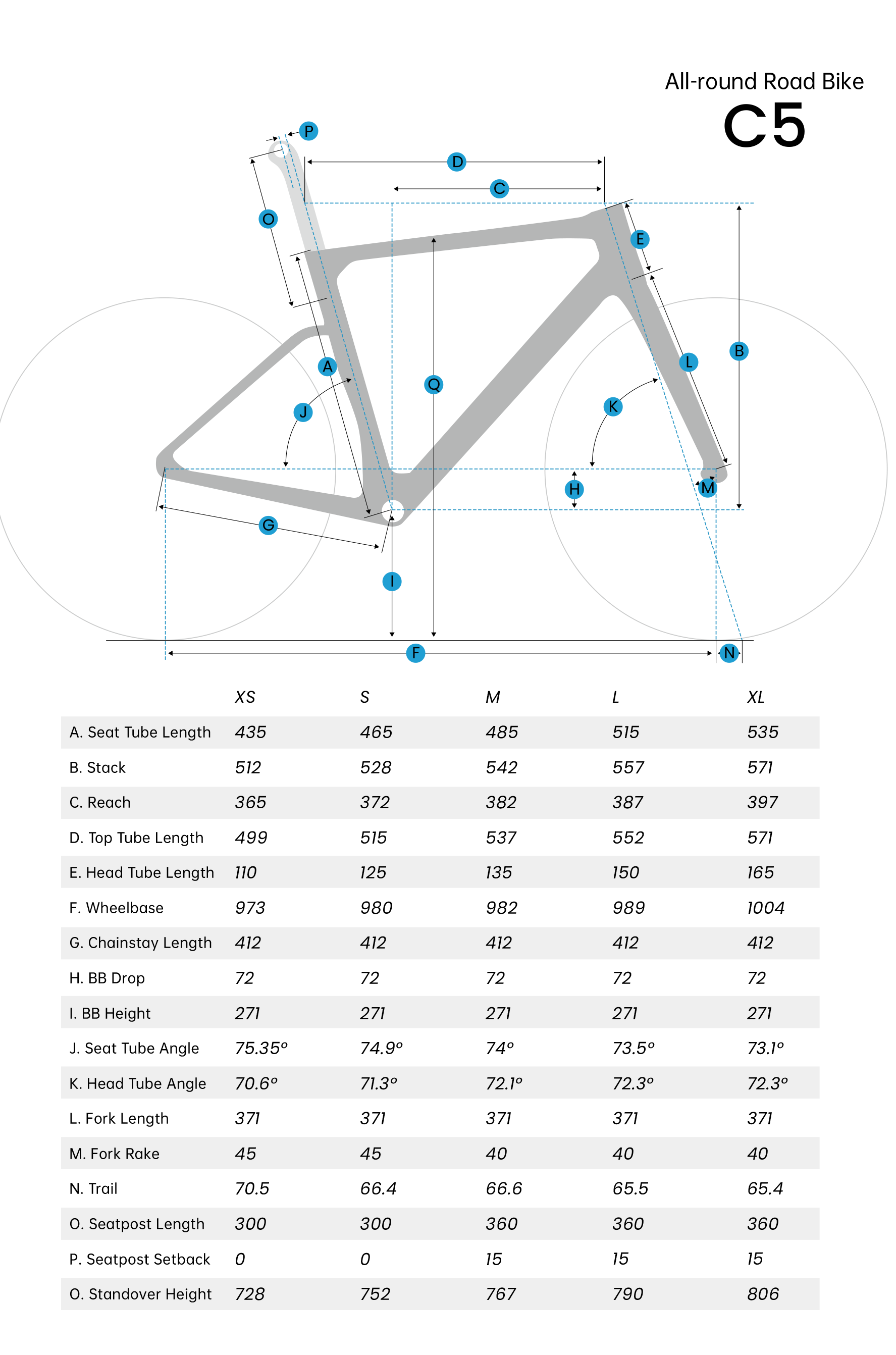

  • Sizes: XS (435mm), S (465mm), M (485mm), L (515mm), XL (535mm)

  • Headset: 1.5″ FSA ACR (headset included.)

  • Bottom Bracket: BB86 Press Fit

  • Seatpost: Proprietary seatpost (included)

  • Braking: Flat mount disc

  • Front derailleur: Brazed on

  • Cable routing: Internal

  • Axles: 12mm through axle; F100mm R142mm

  • Tyre clearance: 700C x 32C max

  • Material: Toray T700 + T800 carbon fibre

  • Weight: 1010g size M

  • Included: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Spare Derailleur Hanger, Axles

  • NOTE: Winspace Zero SL integrated carbon bars are the perfect match for the C5 frameset. More details here.

Why Winspace?

Founded in 2008, Winspace have been designing, building and racing carbon fiber bikes for over a decade. Based at their factory in in Xiamen, China they are at the heart of the carbon fiber industry with a global, local network of dealers to support you.

Why buy from Winspace UK?

Take the risk out of your purchase!

  • We're an official stockist and service centre for Winspace frames, wheels and accessories.

  • We pride ourselves on the personal service we provide and believe our prices are a fair reflection of our dedication to customer support, the advice we are always happy to share and the UK warranty we provide.

  • The price you see is the price you pay. We have already paid import duty and VAT on our stock so there are no hidden costs to you.

  • Come and see the products. We have demo bikes to ride and sets of Hyper wheels in both rim and disc versions you can try before buying.

  • Payment options include debit or credit card, or 3 interest-free 0% payments to help spread the cost.

  • You get the support of a local authorised service centre who can carry out servicing, repairs and warranty work backed up by Winspace and their supply of spares.

  • We can supply framesets and wheels on their own or build you a complete bike using your chosen components. Please call to discuss your ideas and requirements.
